FLO HOME X5 EV CHARGER - while supplies last

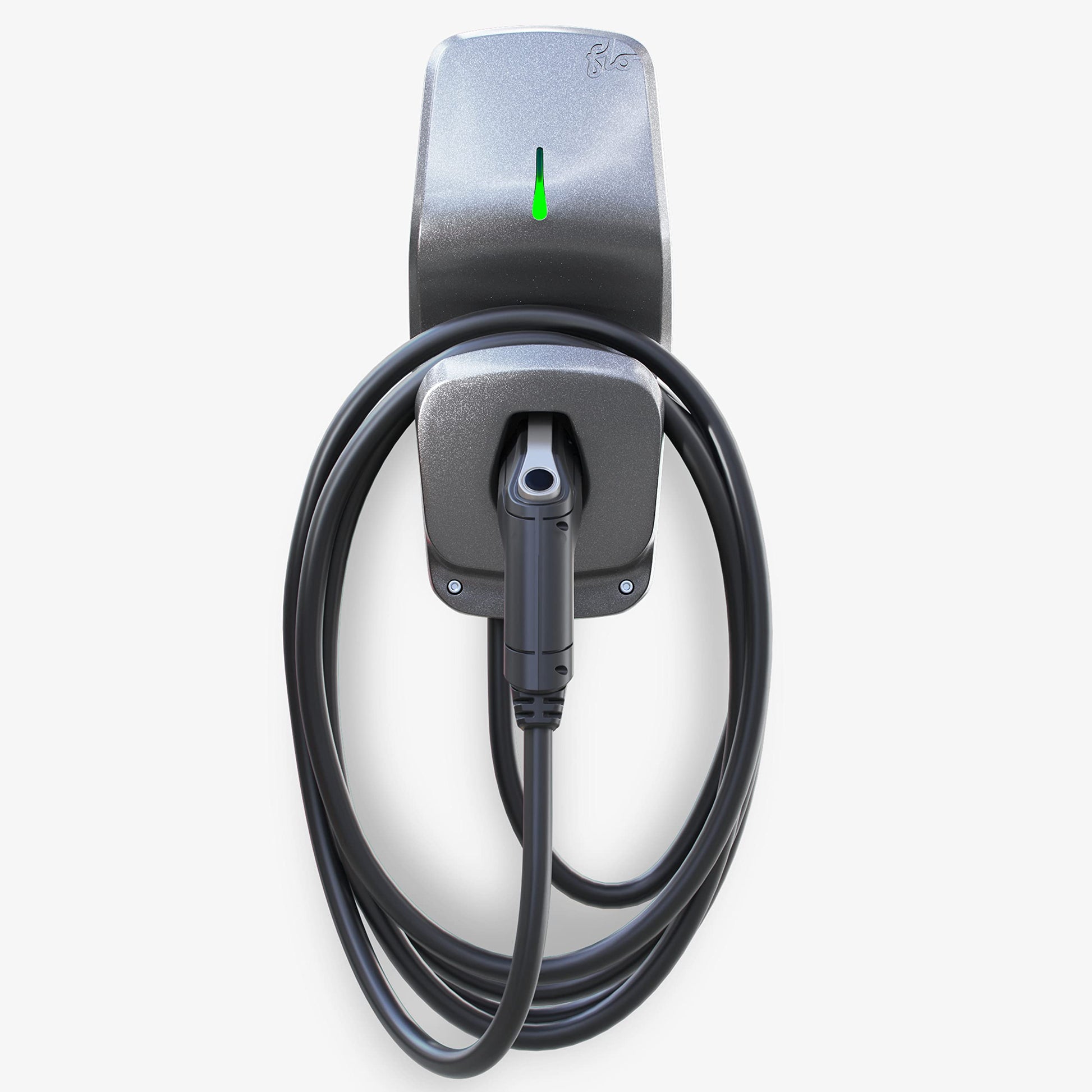

PRODUCT NUMBER - H0X50001-FL-P08  FLO HOME X5

ELECTRICAL

Output Power - 6.2 – 7.2 kW
Output Current - 30 A (adjustable from 6 to 30 A)
AC Input Voltage - 208-240 V @ 60 Hz
AC Input Connection - Hardwired (must be installed by a licensed electrician)
• L1, L2, G
Security Features - Under & rear hardware entry options
- Integrated GFCI 20mA, 3 reset attempts at 15-minute intervals

ENVIRONMENT

Operating temperature -40 °C to 50 °C (-40 °F to 122 °F)

CERTIFICATION & COMPLIANCE

Certifications

• Meets all applicable UL safety standards. Certified by
 CSA group.
• ENERGY STAR
• UL 2231 / UL 2594 / CSA C22.2 No 280
• FCC 47 CFR Part 15

COMMUNICATION

Connection - Powerline communication (PLC Module included)
FLO Mobile App - Dynamic power-sharing, remote start & stop, charging schedule,
real-time status, charging history

PHYSICAL

Dimensions (H x W x D) - 432 mm x 193 mm x 175 mm (17” x 7.6” x 6.9”)
Weight - 11.23 kg (24.76 lbs.)
Cable - 7.62 m (25’) commercial grade
Charging Connector - SAE J1772 designed to withstand 10,000+ charging cycles
Status Indicator - Charging status LED, connectivity status LED, audio
Enclosure - 100 % Aluminum type 4X (waterproof and corrosion proof)
Mounting - Wall bracket included
Impact Rating - IK10
Limited Warranty - 3 years
